5-Axis Machining Centres

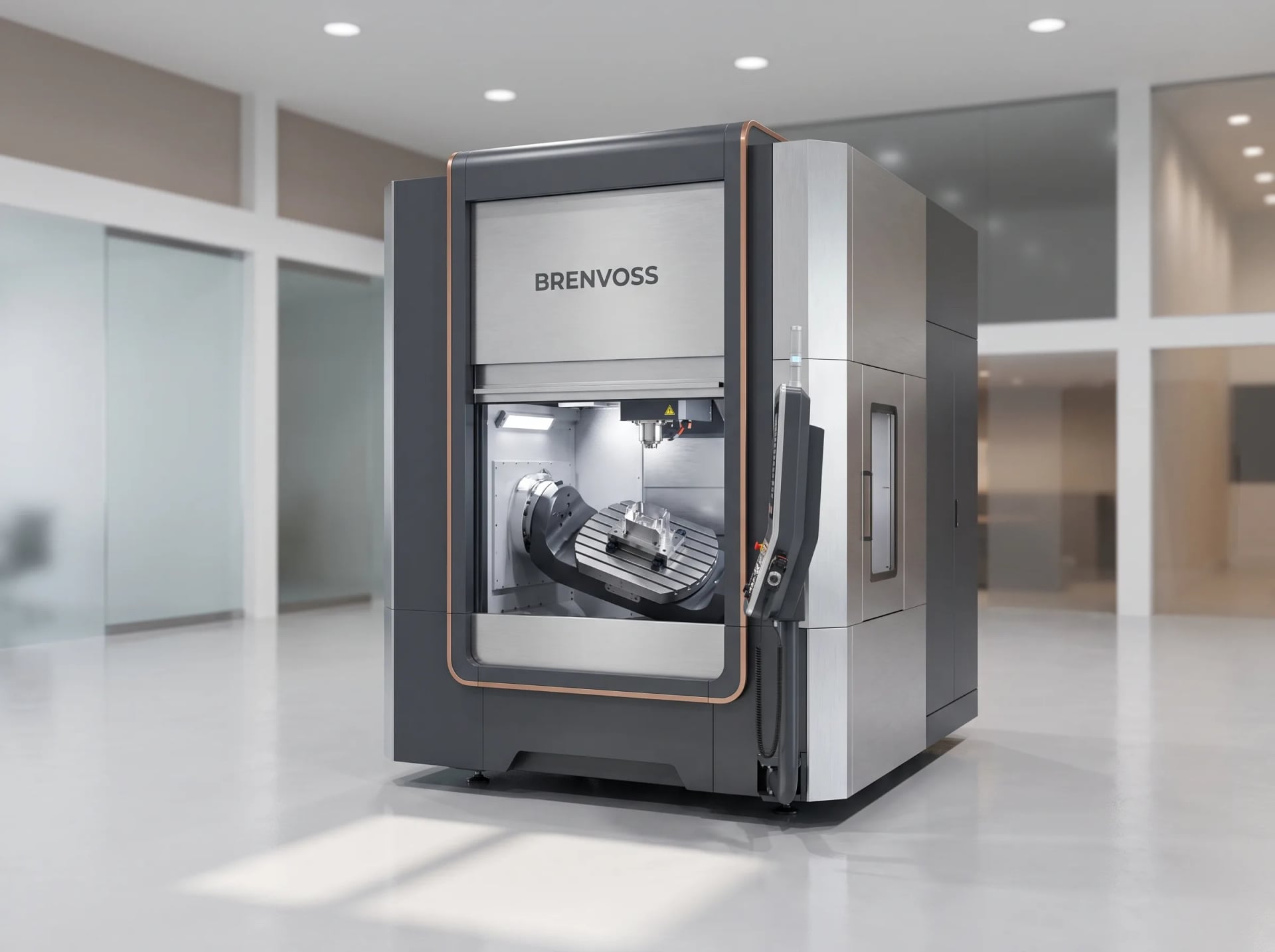

BX5-650
by Brenvoss
Brenvoss's mid-size 5-axis flagship, sized for real production runs of complex parts.
650 mm (25.6 in)
Trunnion table diameter
-30° to +120°
A-axis tilt
360° continuous
C-axis rotation
Not sure if the BX5-650 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops running complex parts at real production volume
- Impeller, turbine and aerospace structural work
- Operations that outgrew occasional 5-axis prototyping
- Buyers who want the table size and spindle power most 5-axis jobs actually need
Trunnion table diameter
650 mm (25.6 in)
A-axis tilt
-30° to +120°
C-axis rotation
360° continuous
Max table load
400 kg (882 lb)
Key Features
BX5-650 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- HSK-A63 spindle to 15,000 rpm, 20,000 rpm optional
- Continuous C-axis, -30° to +120° A-axis tilt
- Absolute linear scales on all linear axes
- Thermal compensation on spindle, trunnion and column
Ease of Operation
- 650 mm trunnion table, 400 kg load rating
- Brenvoss Vantis 5X control with collision simulation and TCP control
- Production-monitoring dashboard standard
Built-In Extras
- 30-station tool magazine
Full Specifications
Brenvoss BX5-650 Technical Details
Complete specifications, standard features, and optional upgrades.
- Trunnion table diameter
- 650 mm (25.6 in)
- A-axis tilt
- -30° to +120°
- C-axis rotation
- 360° continuous
- Max table load
- 400 kg (882 lb)
- X / Y / Z travel
- 700 x 600 x 550 mm (27.6 x 23.6 x 21.7 in)
- Spindle taper
- HSK-A63
- Spindle speed
- 15,000 rpm (20,000 rpm optional)
- Spindle motor power
- 18 kW (24 hp)
- Spindle torque
- 90 Nm (66 lb-ft)
- Rapid traverse
- 50 m/min (1,969 ipm)
- Tool capacity
- 30 stations
- Positioning accuracy
- ±0.005 mm (0.0002 in)
- Repeatability
- ±0.003 mm (0.00012 in)
- Control
- Brenvoss Vantis 5X control
| Trunnion table diameter | 650 mm (25.6 in) |
| A-axis tilt | -30° to +120° |
| C-axis rotation | 360° continuous |
| Max table load | 400 kg (882 lb) |
| X / Y / Z travel | 700 x 600 x 550 mm (27.6 x 23.6 x 21.7 in) |
| Spindle taper | HSK-A63 |
| Spindle speed | 15,000 rpm (20,000 rpm optional) |
| Spindle motor power | 18 kW (24 hp) |
| Spindle torque | 90 Nm (66 lb-ft) |
| Rapid traverse | 50 m/min (1,969 ipm) |
| Tool capacity | 30 stations |
| Positioning accuracy | ±0.005 mm (0.0002 in) |
| Repeatability | ±0.003 mm (0.00012 in) |
| Control | Brenvoss Vantis 5X control |
- 650 mm trunnion table, 400 kg load rating
- HSK-A63 spindle to 15,000 rpm, 20,000 rpm optional
- Continuous C-axis, -30° to +120° A-axis tilt
- Brenvoss Vantis 5X control with collision simulation and TCP control
- Absolute linear scales on all linear axes
- 30-station tool magazine
- Thermal compensation on spindle, trunnion and column
- Production-monitoring dashboard standard
- 20,000 rpm high-speed spindle package
- Automatic 5-axis tool and work probing
- 40-station extended tool magazine
- Trunnion clamp force upgrade for titanium and Inconel
- High-pressure through-spindle coolant, 70 bar
- Impeller, blisk and turbine component machining
- Aerospace structural and airframe components
- Complex mold, die and tooling inserts
- Production runs of multi-angle precision parts
- Titanium and superalloy machining
FAQ
BX5-650 Questions
Answers to common questions about the BX5-650.
Its 650 mm table and 18 kW spindle sit at the size and power most real 5-axis production work actually calls for — big enough for aerospace structural parts and impellers, without the footprint or cost of the BX5-1000.
Yes — with the trunnion clamp force upgrade and appropriate feeds and speeds, the BX5-650 holds its rated ±0.005 mm positioning accuracy through titanium and nickel-superalloy cuts; our applications engineers set up your specific material during commissioning.
Rigging to your floor, leveling, a documented run-off on your part, on-site training, and post-processor development for your CAM system.
Yes, common spindle, trunnion and electrical components are stocked at our Vaughan parts warehouse, with next-day availability on less common items from our suppliers.
