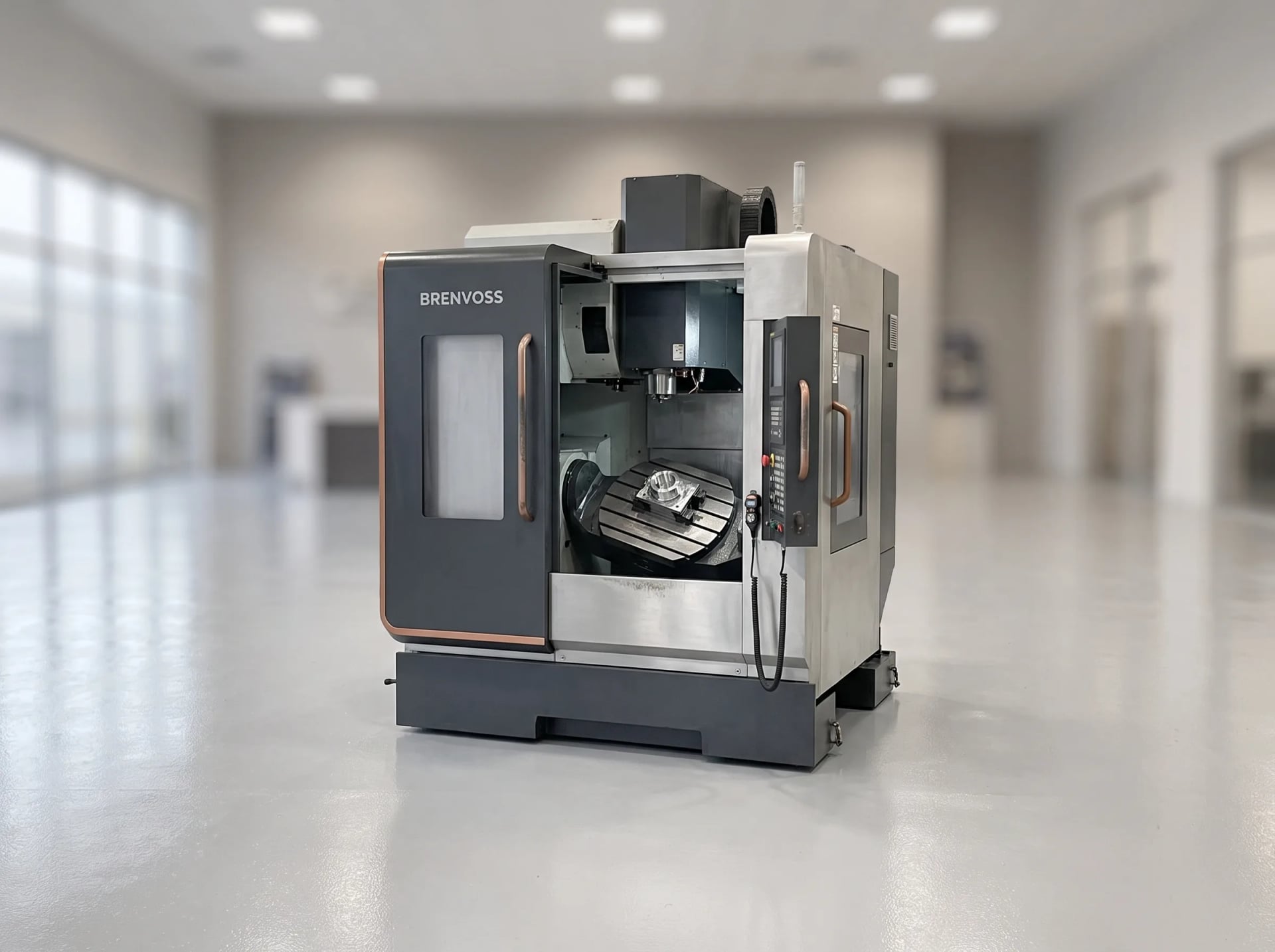

BX5-400
by Brenvoss
Compact 400 mm trunnion 5-axis centre for complex aerospace and medical components.
400 mm (15.7 in)
Trunnion table diameter
-30° to +120°
A-axis tilt
360° continuous
C-axis rotation
Not sure if the BX5-400 is right for your application?
Our AI can help you compare machines, find parts, and explore your options.
Ideal For
- Shops entering aerospace or medical machining for the first time
- Complex parts needing multiple compound angles in one setup
- Operations trying to eliminate manual re-fixturing
- Small-to-mid envelope precision components
Trunnion table diameter
400 mm (15.7 in)
A-axis tilt
-30° to +120°
C-axis rotation
360° continuous
Max table load
150 kg (331 lb)
Key Features
BX5-400 Features
Standard features that set this machine apart in demanding manufacturing environments.
Precision & Performance
- Continuous C-axis with -30° to +120° A-axis trunnion tilt
- HSK-A63 spindle to 18,000 rpm, 24,000 rpm optional
- Simultaneous 5-axis interpolation with tool-centre-point control
- Absolute linear scales on all linear axes
- Thermal compensation on spindle and trunnion
Built-In Extras
- 24-station tool magazine
- Compact footprint for shops with limited floor space
- Brenvoss Vantis 5X control with built-in collision simulation
Full Specifications
Brenvoss BX5-400 Technical Details
Complete specifications, standard features, and optional upgrades.
- Trunnion table diameter
- 400 mm (15.7 in)
- A-axis tilt
- -30° to +120°
- C-axis rotation
- 360° continuous
- Max table load
- 150 kg (331 lb)
- X / Y / Z travel
- 500 x 450 x 400 mm (19.7 x 17.7 x 15.7 in)
- Spindle taper
- HSK-A63
- Spindle speed
- 18,000 rpm (24,000 rpm optional)
- Spindle motor power
- 13 kW (17.4 hp)
- Spindle torque
- 45 Nm (33 lb-ft)
- Rapid traverse
- 60 m/min (2,362 ipm)
- Tool capacity
- 24 stations
- Positioning accuracy
- ±0.004 mm (0.00016 in)
- Repeatability
- ±0.002 mm (0.00008 in)
- Control
- Brenvoss Vantis 5X control
| Trunnion table diameter | 400 mm (15.7 in) |
| A-axis tilt | -30° to +120° |
| C-axis rotation | 360° continuous |
| Max table load | 150 kg (331 lb) |
| X / Y / Z travel | 500 x 450 x 400 mm (19.7 x 17.7 x 15.7 in) |
| Spindle taper | HSK-A63 |
| Spindle speed | 18,000 rpm (24,000 rpm optional) |
| Spindle motor power | 13 kW (17.4 hp) |
| Spindle torque | 45 Nm (33 lb-ft) |
| Rapid traverse | 60 m/min (2,362 ipm) |
| Tool capacity | 24 stations |
| Positioning accuracy | ±0.004 mm (0.00016 in) |
| Repeatability | ±0.002 mm (0.00008 in) |
| Control | Brenvoss Vantis 5X control |
- Continuous C-axis with -30° to +120° A-axis trunnion tilt
- HSK-A63 spindle to 18,000 rpm, 24,000 rpm optional
- Simultaneous 5-axis interpolation with tool-centre-point control
- Brenvoss Vantis 5X control with built-in collision simulation
- Absolute linear scales on all linear axes
- 24-station tool magazine
- Thermal compensation on spindle and trunnion
- Compact footprint for shops with limited floor space
- 24,000 rpm high-speed spindle package
- Automatic 5-axis tool and work probing
- Trunnion clamp force upgrade for titanium work
- Extended tool magazine, 40 stations
- Aerospace brackets, housings and structural components
- Medical implant and instrument machining
- Complex multi-angle mold and die inserts
- Turbine and impeller component work
FAQ
BX5-400 Questions
Answers to common questions about the BX5-400.
Yes — our applications engineers build and prove your post-processor and first simultaneous 5-axis toolpath in the Vaughan Tech Centre as part of the sale, so your team learns on a working program, not a blank screen.
The Brenvoss Vantis 5X control accepts standard G-code from any major CAM package; our applications engineers can advise on post-processor setup for the system your team already uses.
Typically 12-14 weeks build-to-order given the trunnion and HSK-A63 spindle package; we confirm your exact date once your configuration is finalized.
Yes, every BX5-400 includes on-site training on the Vantis 5X control plus 5-axis setup and workholding fundamentals, with follow-up classes available at our Tech Centre.
